首页产品中心Leica 徕卡生物显微镜 DM500

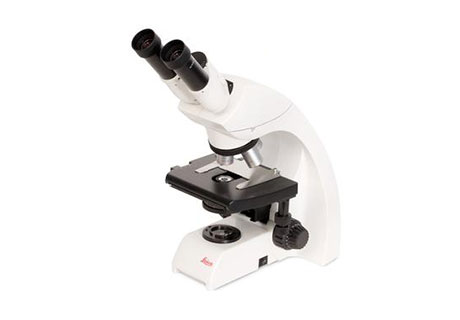

Leica 徕卡生物显微镜 DM500

产品描述

徕卡生物显微镜 DM500 具有“即插即用”功能,对于教师和学生,都是学院和大学初级生命科学课程教学的一种方便有趣的理想工具。

适合学生的各种功能,如预聚焦、预居中的聚光器和EZTube™预置屈光度,这些功能可以避免错误调整,为实践操作教学提供更多时间。

EZStore™具有一体化手柄及绳裹,便于搬运和提升,且防止显微镜部件损坏

DM500带来的优势:

具有预置屈光度的EZTube

预聚焦且预居中的聚光器 – 避免调整

EZStore 具有手柄和绳裹,便于显微镜搬运,并保护显微镜部件免受损坏。

EZLite –提供 超过20年的照明、LED照明可节省时间及更换灯泡的费用。

我们推荐DM500搭配成像系统 MC56使用:

MC56采用了创新SpeedXT core技术,提供非常快的实时速度为13 fps的五百万像素的分辨率。一个明显的优势,在分析移动对象和实验室的日常工作中,由于增强实时图像组合速度与高分辨率用户被启用以便进行精确聚焦和易于标本无交错效果的定位更有效的方法。

MC56优点:

SpeedXT core - 优秀的CCD:实时图像速度容易聚焦

卓越的图像质量和高清晰度

完美的色彩再现

方便快速的安装

优异的价格性能比

显微镜数码相机 MD50-T



实拍图片
产品参数

Microscope Type

Trinocular Microscopes

Separate Eyepiece

10x/20 (20mm Field of View) 30mm mounting diameter Available fixed or focusing Available with or without pointer Focusing eyepieces with reticle holder for 21mm reticle Foldable eyeguards High eyepoint

EZTube

10x/18 (18mm Field of View) 45 degree viewing angle Attaches to stand with set screw Available with pointer and without pointer Captive thumbscrew availablity for safe rotation Eyepieces are integrated into tube Interpupillary Distance Range 52mm – 75mm Preset Diopters for corrected vision

Other Viewing Tubes for Separate Eyepieces

45 degree, 30 degree, Trinocular Eyepiece locking screw Interpupillary Distance Range 52mm – 75mm Leica Tube dovetail standard Maximum Field of view 20mm Rotatable dovetail

Stand

4 position nosepiece only Drop in holder for 32 mm mounted or not mounted filters External fuses Knurled nosepiece Stand construction – die cast aluminium Stand shape protects controls

EZStore

Cord wrap Undercut in front of stand Vertical cord attachment to stand Vertical handle

Objectives

100x dry objective with N.A. 0.8 (no correction collar) HI Plan for FOV 20 Infinity Platform M25 nosepiece thread Objective labeling laser engraved (HI Plans) Plan optics for FOV 18

EZGuide

26mm x 76mm stage travel One handed slide loading

SafeTStage

Non extending rack Rounded stage edges Stage surface 185mm (150mm front) wide X 140mm deep Verniers for X/Y coordinates

Condenser

Prefocused and Precentered Condenser Slot in condenser for contrast sliders (Phase, Darkfield, Compensator) Magnification labels on condenser

Focusing

Low position focus controls Self adjusting focus mechanism 300 microns per fine focus rotation Calibrated in 3 micron increments

EZLite

Continuous intensity adjustment Illumination enough for viewing at lowest intensity LED illumination - 6000 K temp, 25,000 h life at full intensity Preset Field aperture only Simple Polarizing Kit available

Imaging

Trinocular tubes available (50%/50% light split) C mount adapters with standard Leica mount ICC50 Intermediate Camera Module (50%/50% light split) Stand Alone kit for ICC50 Camera Module (Power supply, Analog Video Cable)

Intermediate Modules

15mm Flat top module 35mm Intermediate Ergo module available Analyzer Module with pin for Viewing Tube alignment Module for LSF Reflected Light Illuminator

AgTreat

Anti Microbial Treatment

Certifications

CE cULus RoHS
